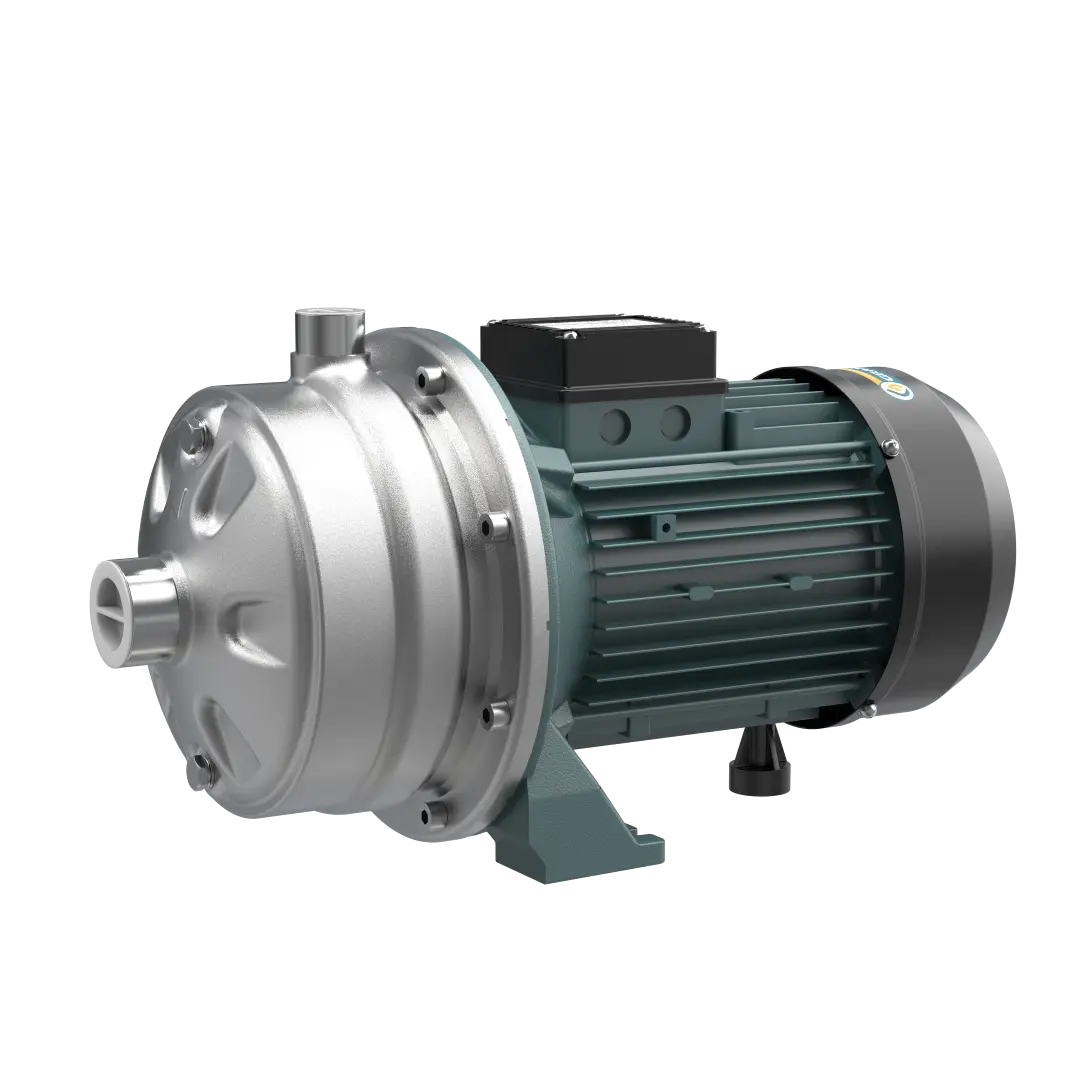

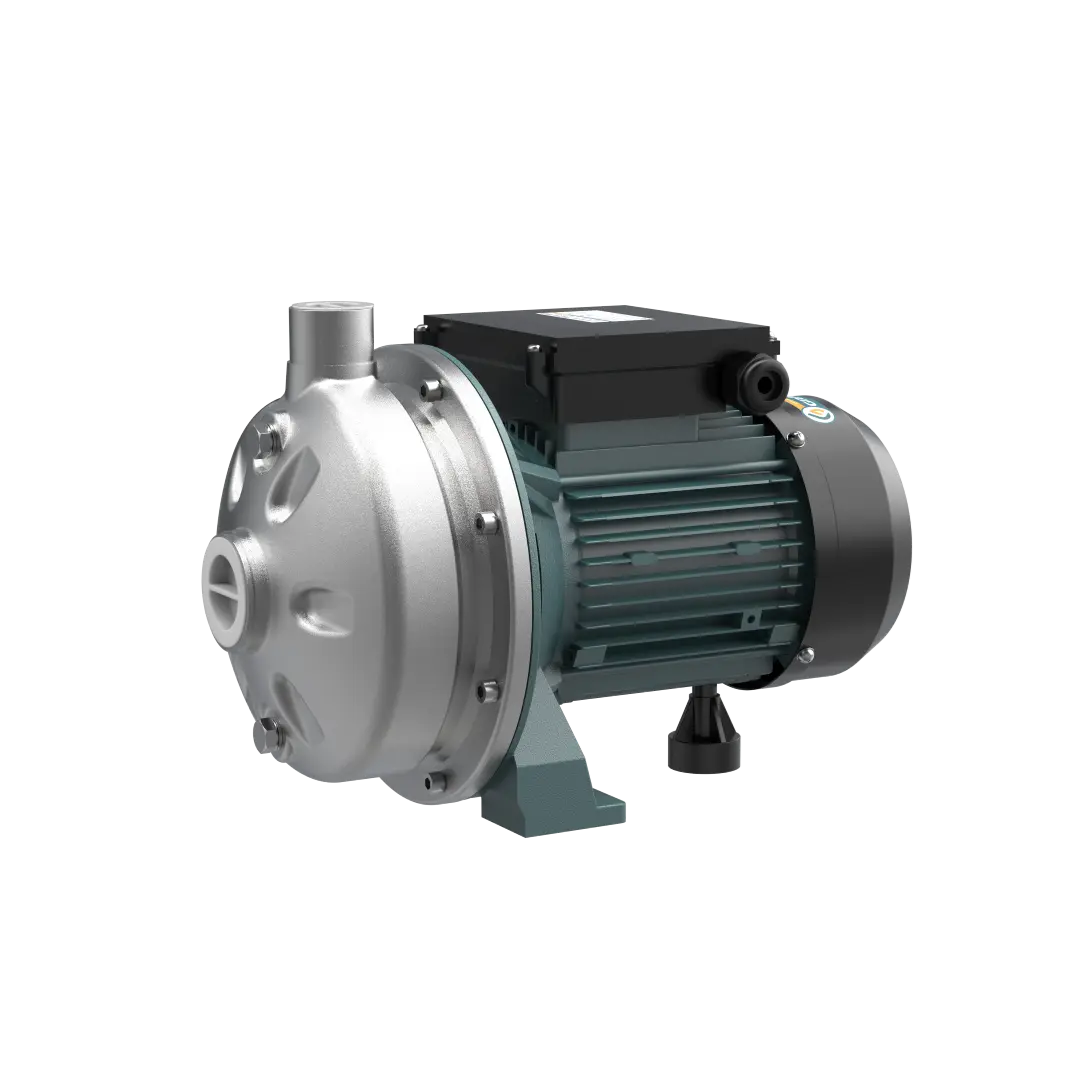

GCD Horizontial Stainless Steel Centrifugal Pump

Description
Installation And Use:
GCD series is horizontal centrifugal pump, it’s suitable for pumping clean water without abrasive particles, and liquids that are chemically non aggressive for the materials of which the pump is made. This series can be used to supply and move water in cooling, circulating and conditioning systems, as well as irrigation, civil, industrial and agricultural applications. The pumps should be installed in enclosed environment, or at least sheltered from inclement weather.
Features:
Application Range
Performance Parameter
Components
Dimensions

Rated.Flow: 18 m³/h

Rated.Head: 76 m

Power range: 0.55~4.7 kW

Size: G1¼”/G1½”



Application Limits

Medium temperature:

standard model: -20~ + 70℃

high temperature: -20~ + 104℃

Max.working pressure:1 MPa



Construction

Pump Body: Stainless steel.

Motor Shaft: stainless steel .

Motor housing: Aluminum.

Mechanical Seal: Ceramic- graphite.

Electric Motor: Single- phase with condenser and

thermal overload protector built into the copper winding.

Insulation: Class F.

Protection: IP 55.
