Installation And Use:
UP pumps are designed for air energy hot water circulation system, solar hot water circulation system, heating system, pressurization of domestic tap water, industry hot or cold water circulation system, etc.
Features:

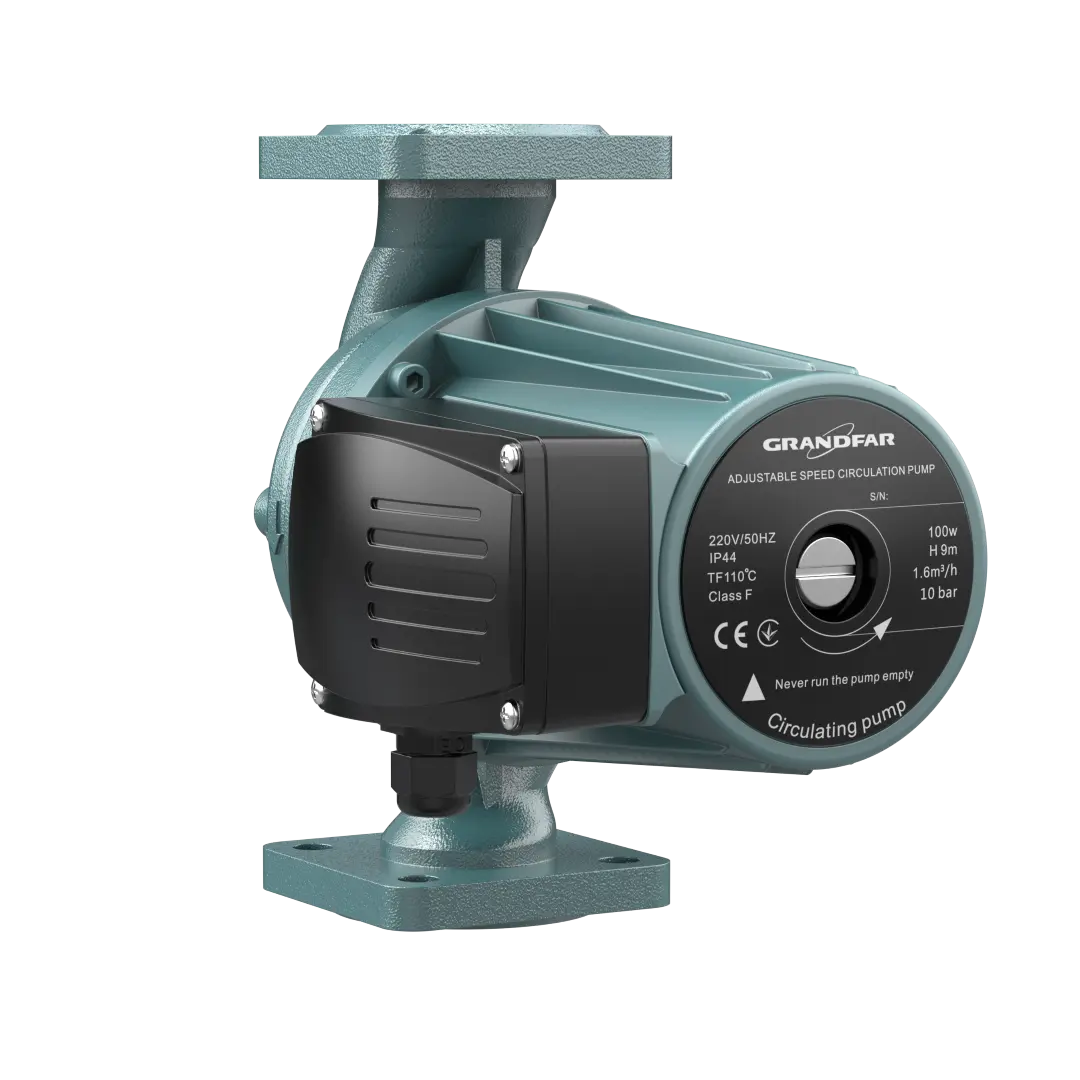

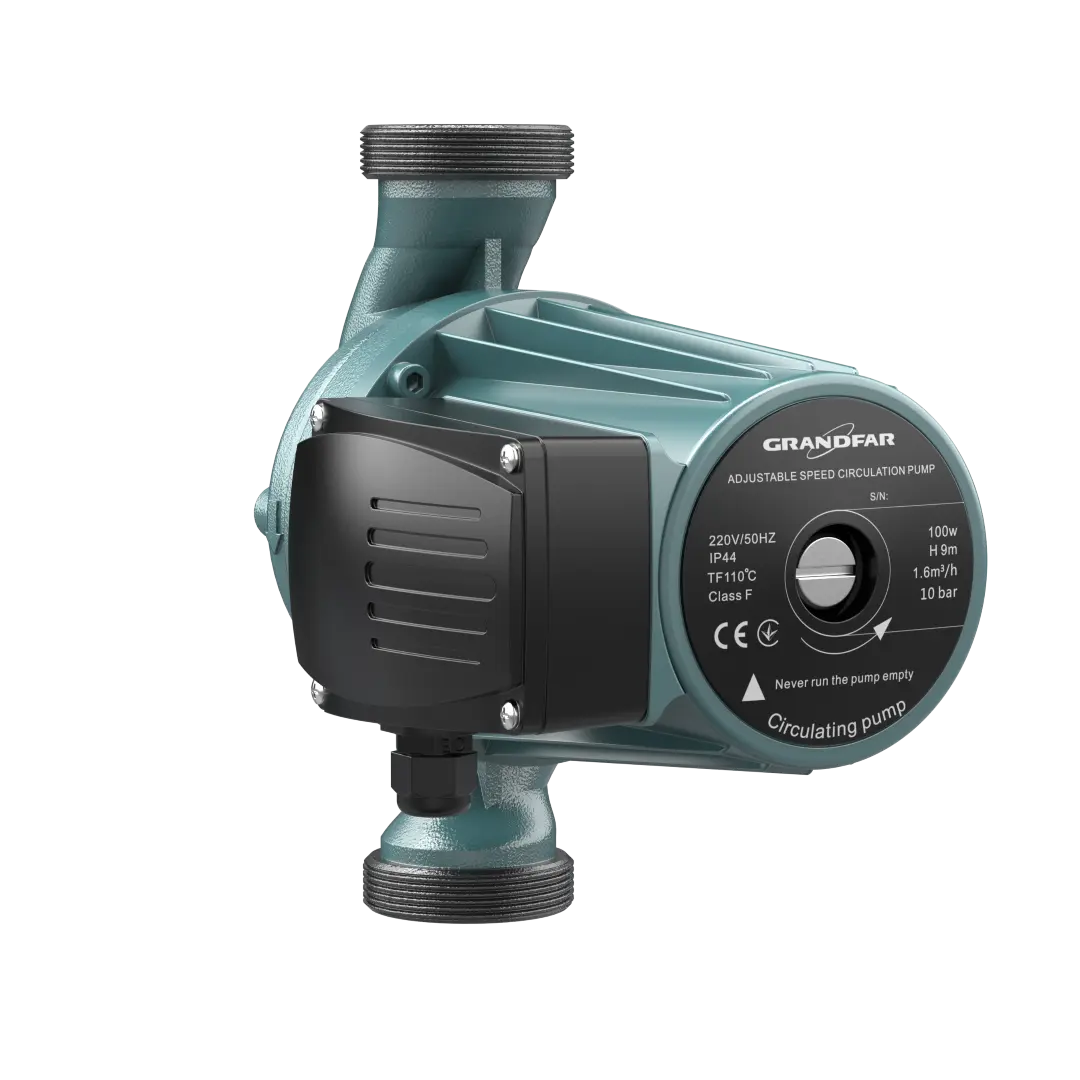

UP Circulation Pump
Description
Application Range
Performance Parameter
Components
Dimensions
Max.Flow:35 m³/h
Max.Head:20 m
Application Limits
Liquid temperature:+2℃~+110℃
Maximum ambient temperature: +40℃
Maximum system pressure: 10 bar
Protection level:IP44
Mains connection:220V/50Hz
Insulation class:F
Pumped liquid characteristics:clean,free from solids
and mineral oil,non-toxic,chemically neutral,close to
the characteristics of water.
Installation:the motor shaft must be kept in horizontal
direction
PH:6.5 to 8.5
Optional Available On Request
The inlet and outlet of UP series products has both
pipe thread connection and partial flange connection,
which can be selected according to needs. Cast iron is
generally used, but brass or stainless steel is also
used according to the needs of users.
