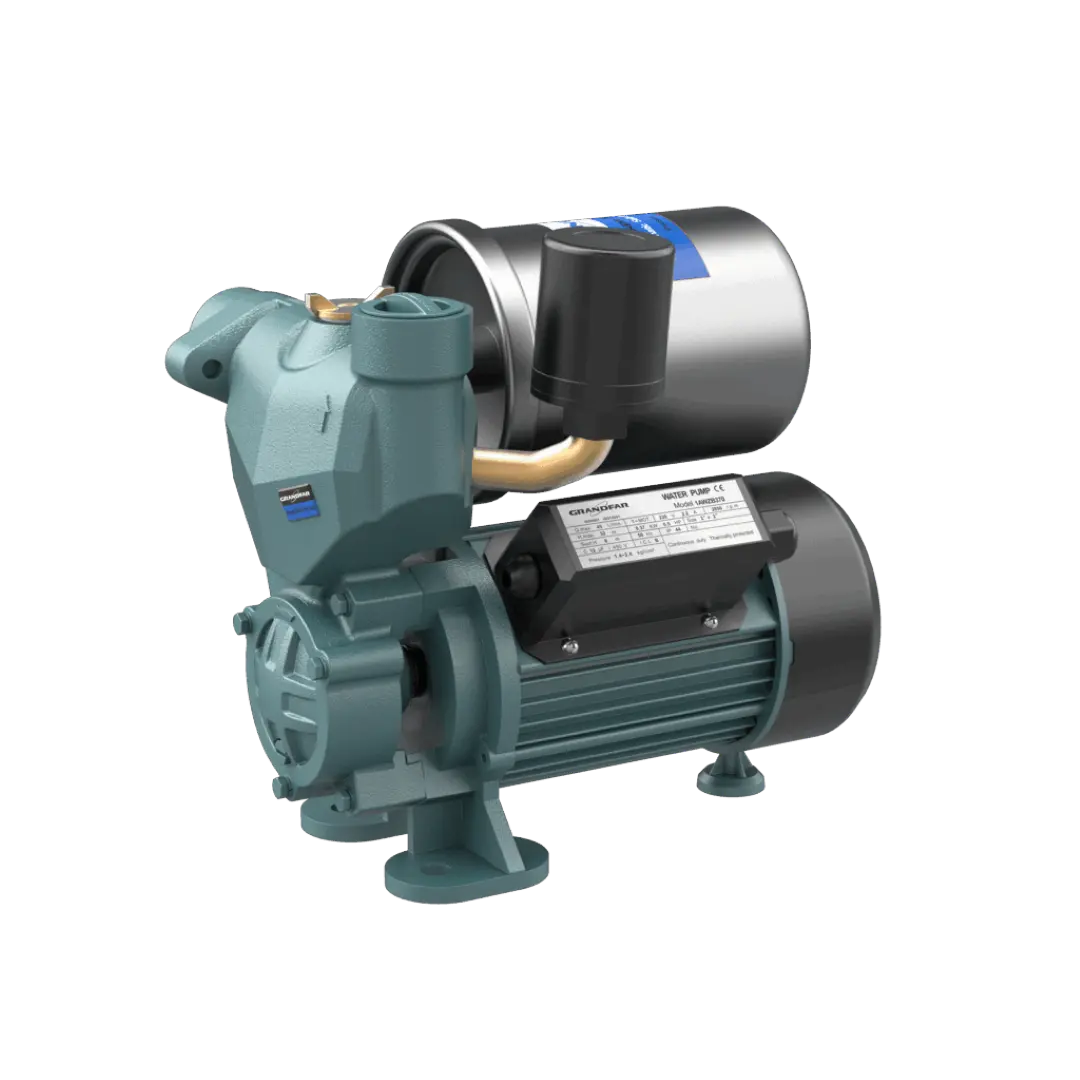

They are recommended for pumping clean water without abrasive particles, and liquids that are chemically non aggressive for the materials of which the pump is made. As a result of their reliability, compact, economy and the fact that they are easy to use, they are particularly suitable for domestic and industrial applications such as water supply for recirculation in air conditioners and refrigerators, industrial water uses in general, and the automatic distribution of water from surge tank, garden watering, water suction from tanks or wells down to 9 meter depth. The pumps should be installed in enclosed environment, or at least sheltered from inclement weather.

Flow rate up to 65 L/min (3.9 m³/h)

Head up to 50 m



Application Limits

Manometric suction lift up to 8 m

Liquid temperature up to +40℃

Ambient temperature up to +40℃



Construction

Pump Body: Cast iron.

Impeller: Brass.

Motor Shaft: 304 stainless steel shaft.

Mechanical Seal: Ceramic – graphite.

Insulation: Class B.

Protection: IP 44.
