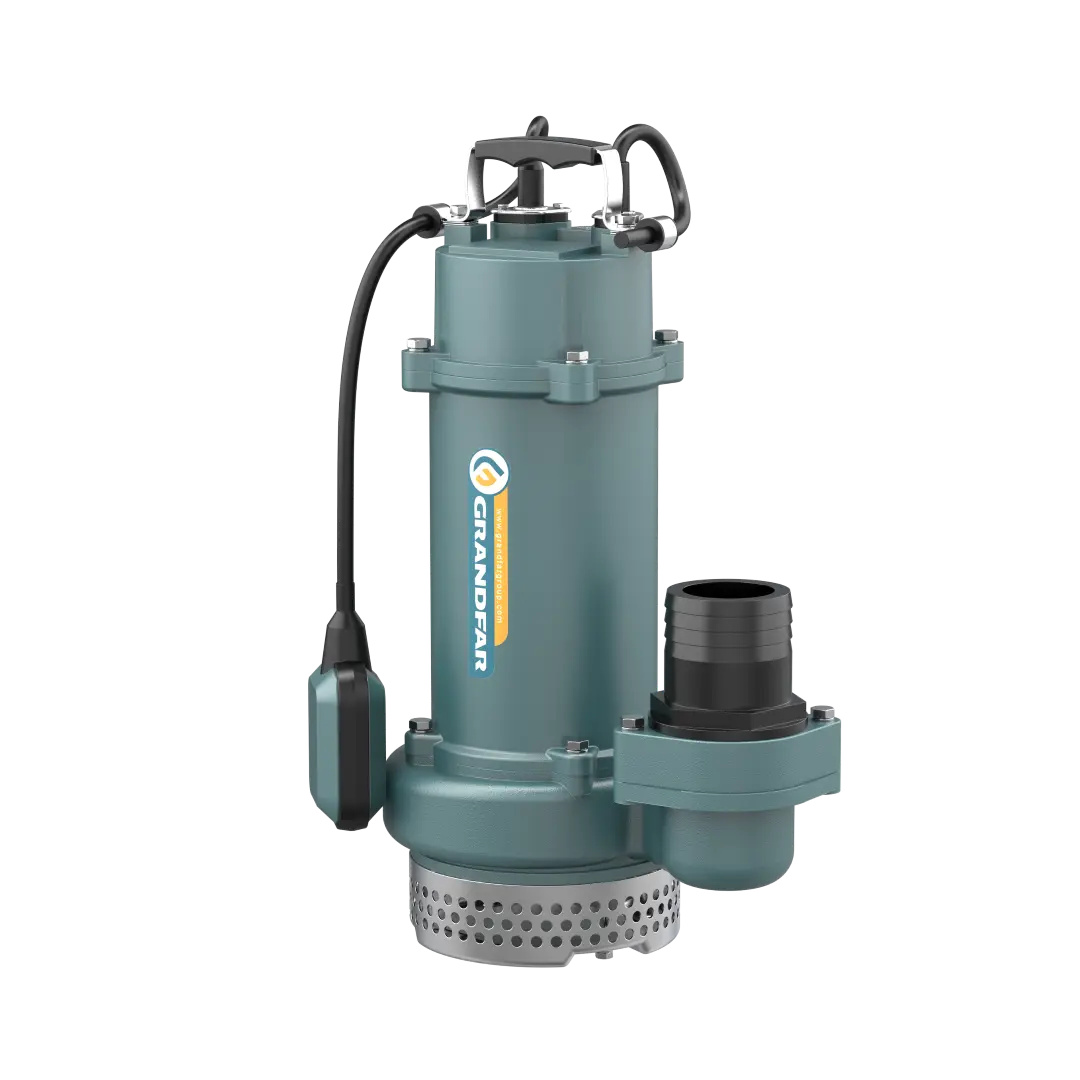

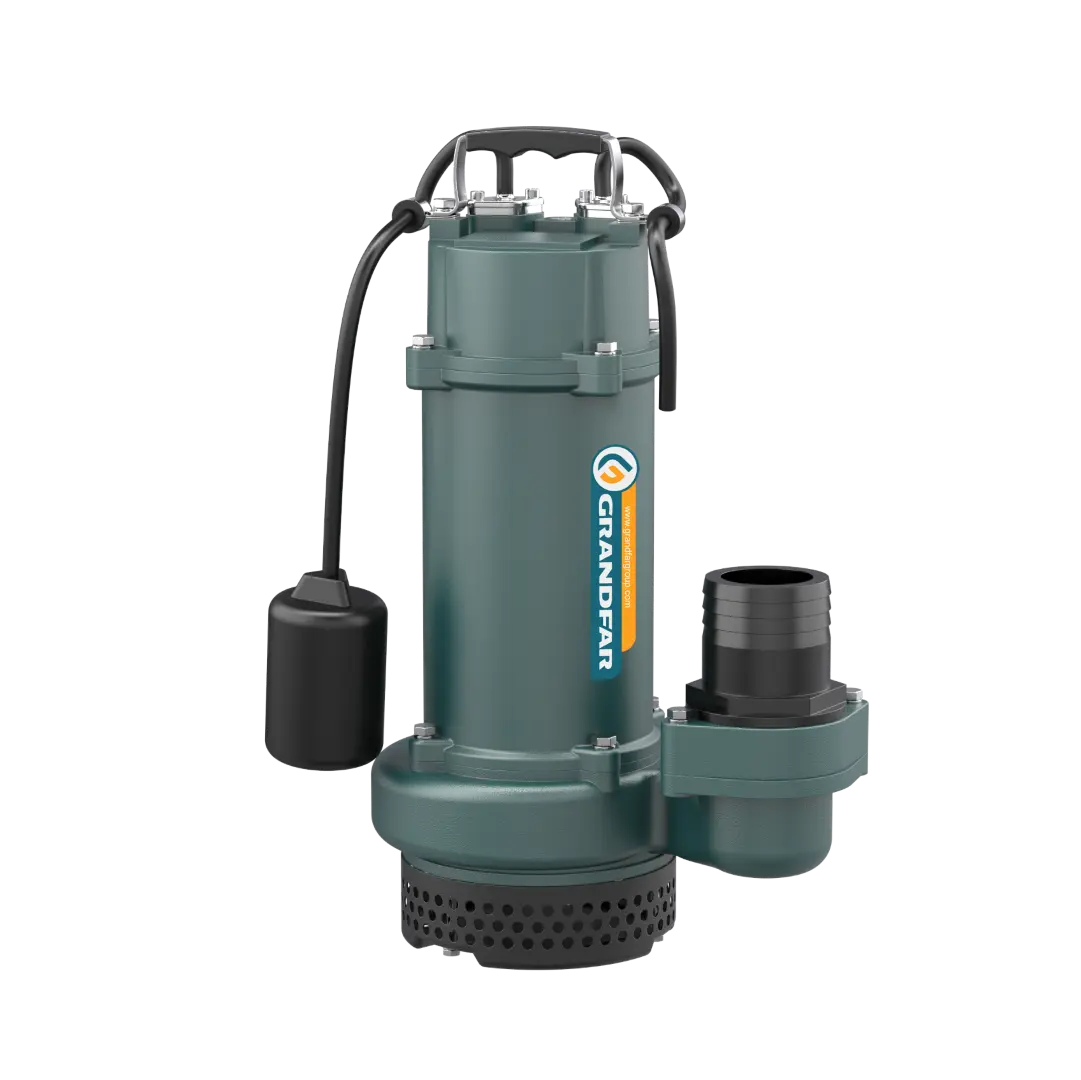

KD Submersible Sewage & Drainage Pump

KD series drainage pumps are made of cast iron, corrosion-resistant, high head, low load, no overload, the bottom of the configuration of the strainer, used to filter large particles of solids, to ensure that the pumps work normally for a long time in the garden irrigation, farm irrigation, pumping and drainage of water supply, wells and other environments.

Flow rate up to 683 L/min (41 m³/h)

Head up to 29 m



Application Limits

Maximum immersion depth: 5 m

Liquid temperature: + 40 °C



Construction

Pump Body: Cast iron

Impeller: Cast iron

Motor Shaft: Stainless steel

Mechanical Seal: Sic-Ceramic

Insulation: Class B

Protection: IP 68
