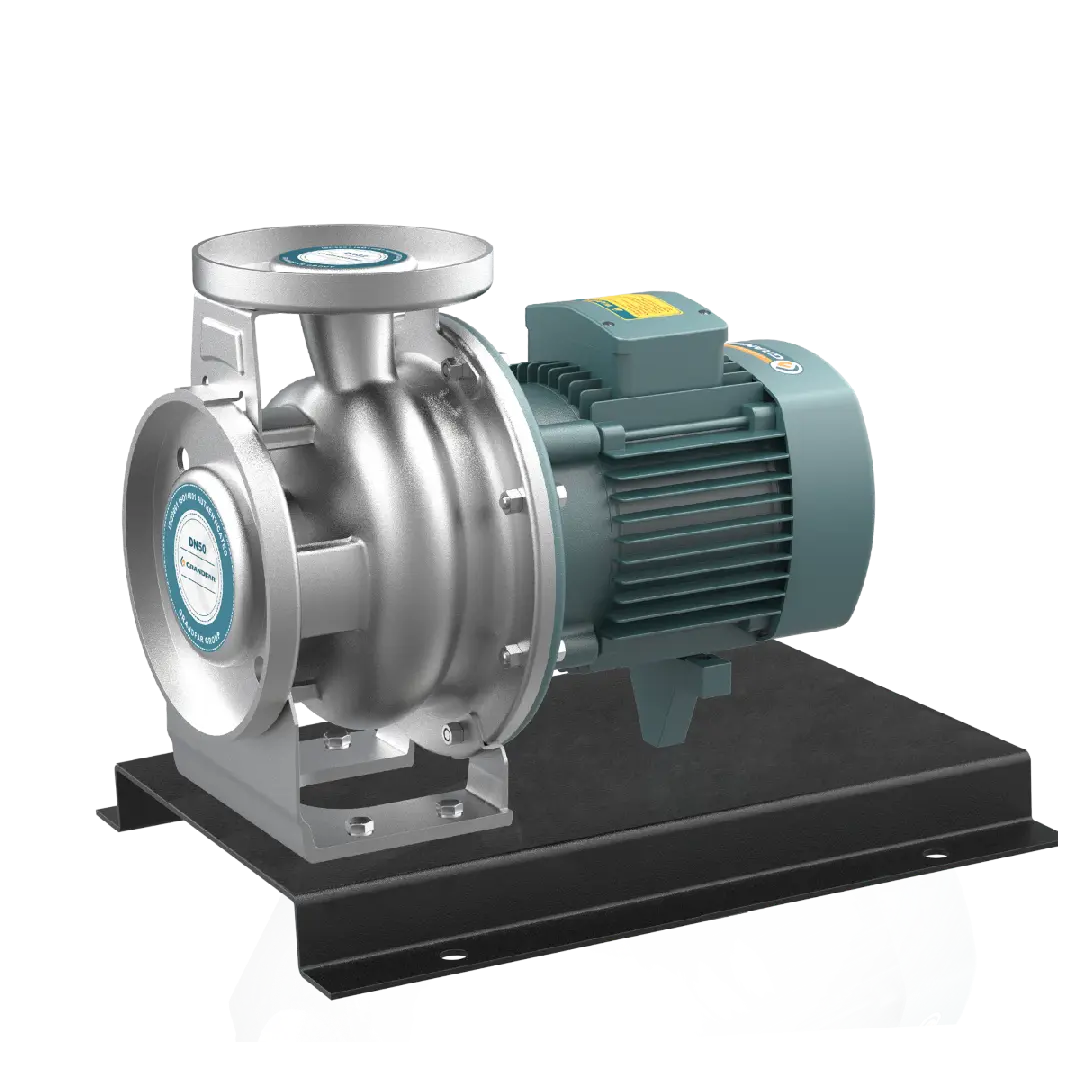

GSA Horizontial Stainless Steel Centrifugal Pump

Description
Installation And Use:
GSA series is horizontal centrifugal pump, it’s suitable for pumping clean water without abrasive particles, and liquids that are chemically non aggressive for the materials of which the pump is made. This series can be used to supply and move water in cooling, heating, circulating and conditioning systems, as well as irrigation, civil, industrial and agricultural applications. The pumps should be installed in enclosed environment, or at least sheltered from inclement weather.
Features:
Application Range
Performance Parameter
Components
Dimensions

Flow rate up to 200 m³/h

Head up to 73 m



Application Limits

Medium temperature:

low temperature: – 20~ + 70℃

standard model: + 15~ + 70℃

high temperature: + 70~ + 104℃

Environmental temperature:≤ 50℃

Max.working pressure:1.0 MPa



Construction

Pump Body: Stainless steel.

Motor Shaft: stainless steel .

Motor housing: Aluminum.

Mechanical Seal: Ceramic- graphite.

Electric Motor: Closed,externally ventilated.

Thermal protector: Single-phase.

Insulation: Class F.

Protection: IP 55.
