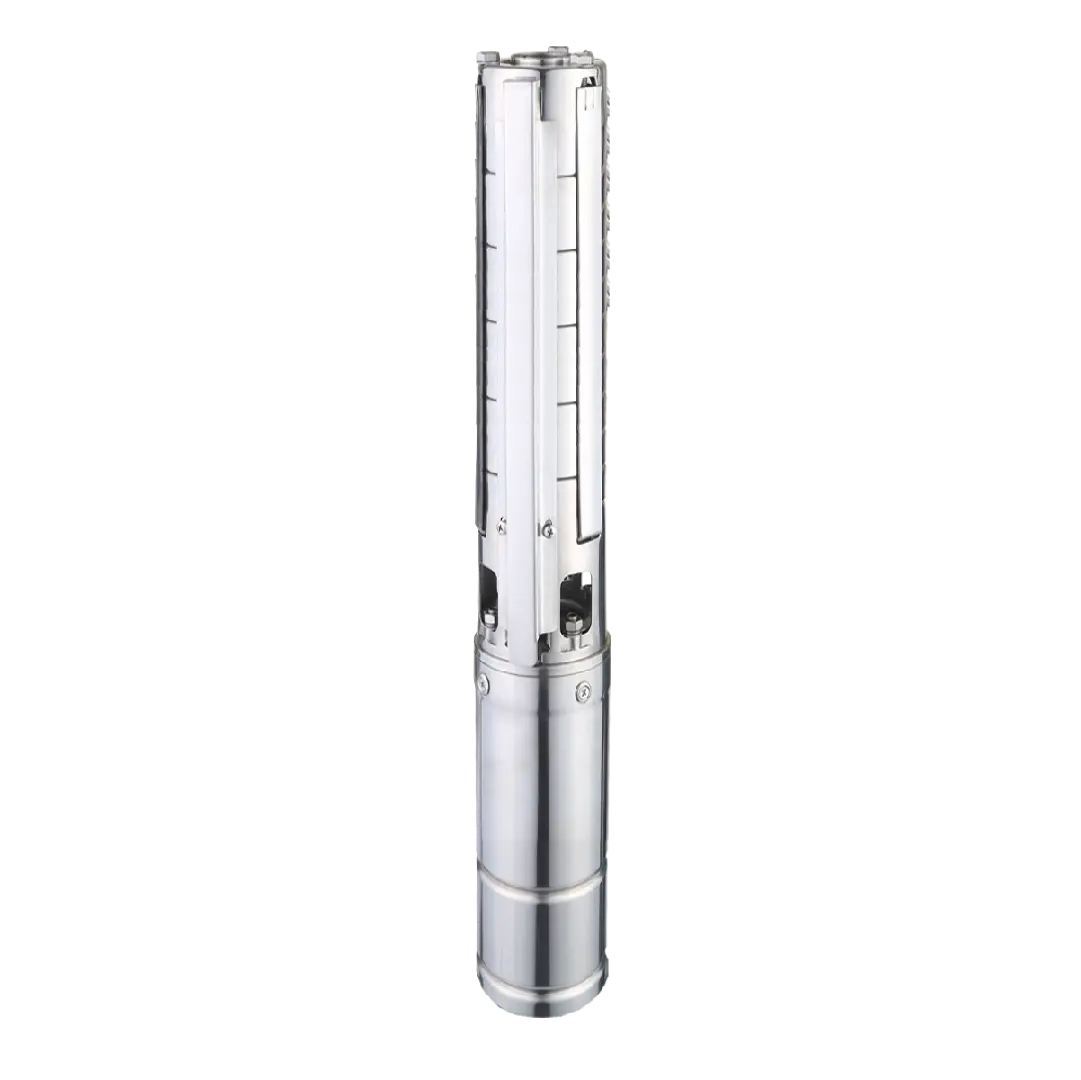

4SSP Solar Pump

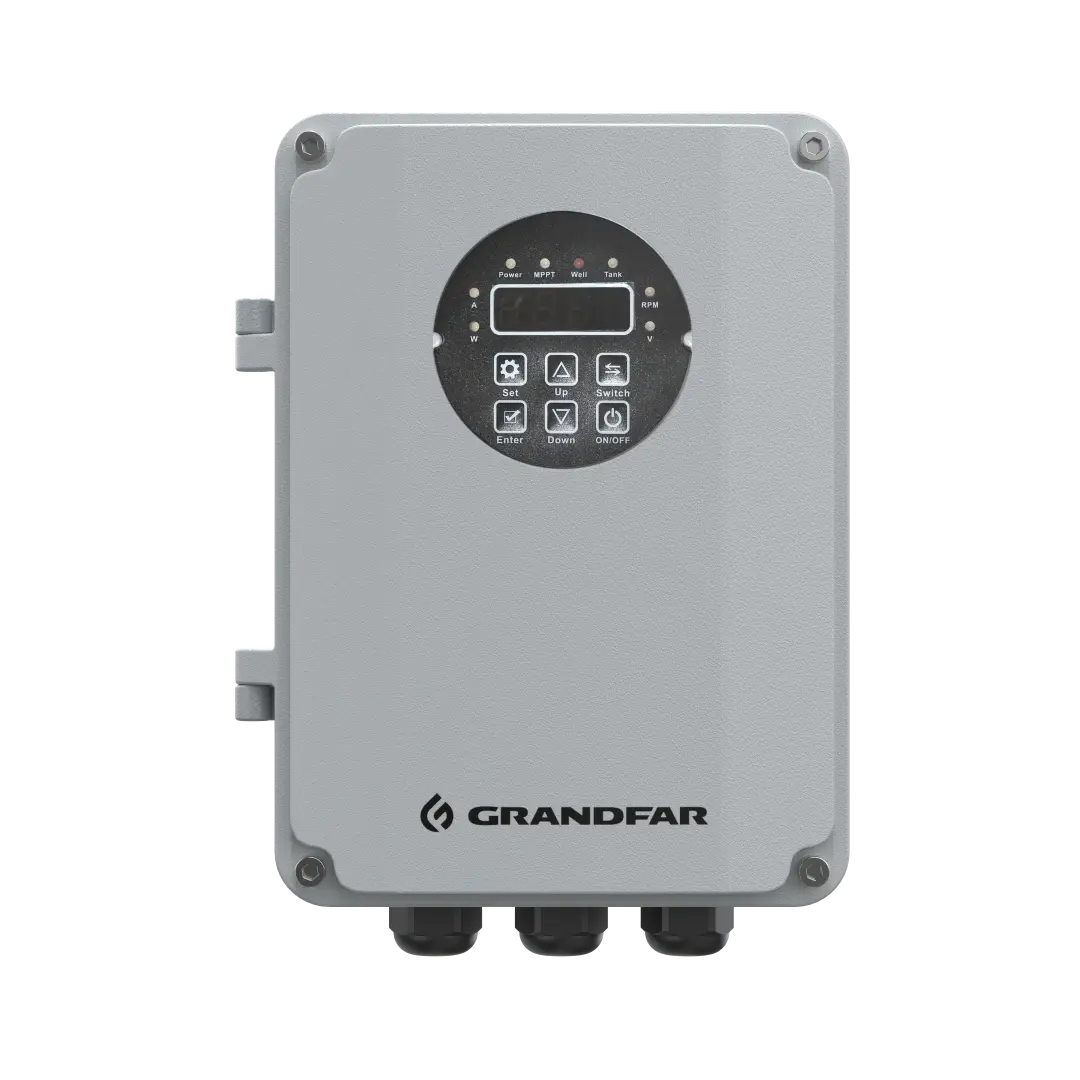

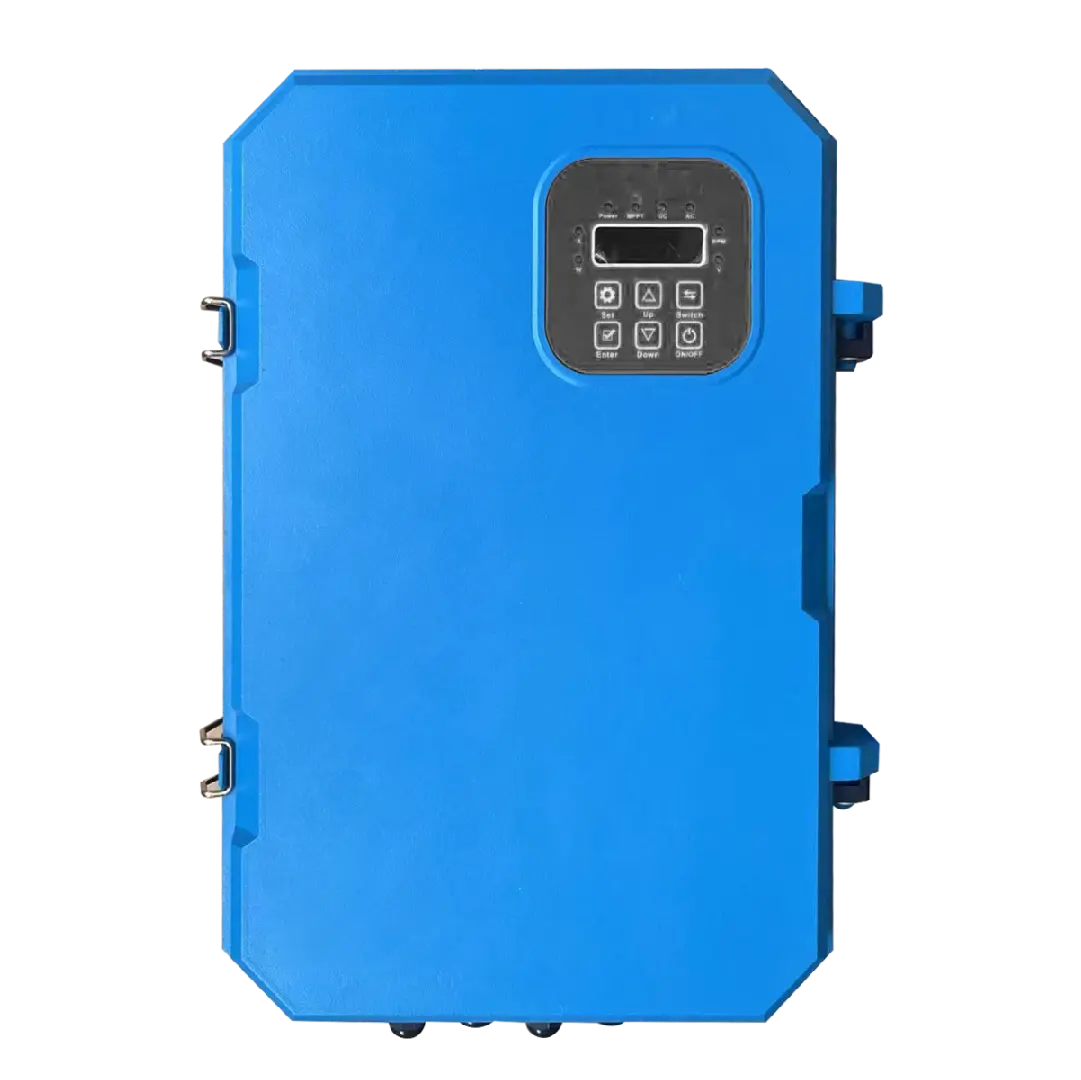

The whole device of solar pump is mainly composed of solar panel, control box and pump. Submersible solar pumps use solar energy to pump and transport water. It is a pump that is immersed in water. It is the most attractive water supply method in the sun-rich regions of the world today, especially in remote areas that lack electricity and electricity. It is mainly used for domestic water supply, agricultural irrigation, garden watering and so on. In addition to the pump and renewable energy source, solar pump incorporates all necessary controls, communication and ancillary units delivered as one complete system. The system can be combined and adapted to any need, matching the conditions on the installation site. The choice of energy source and wide- ranging performance ensures extreme flexibility.

Flow rate up to 600L/min (36m³/h)

Head up to 260 m



Application Limits

Max. immersion depth: 70 m

Minimum well diameter: 4″



Construction

Outlet: Stainless steel.

Pump Body: stainless steel.

Motor Body: Stainless steel.

Bearing: NSK/ C&U.
