Motor and accessories
- 2 stepper motors continuously adjustable between 1 and 25 rpm
- Long-life peristaltic tubes (TPV)
Power supply
100 to 240 VAC
Stepper metering pumps

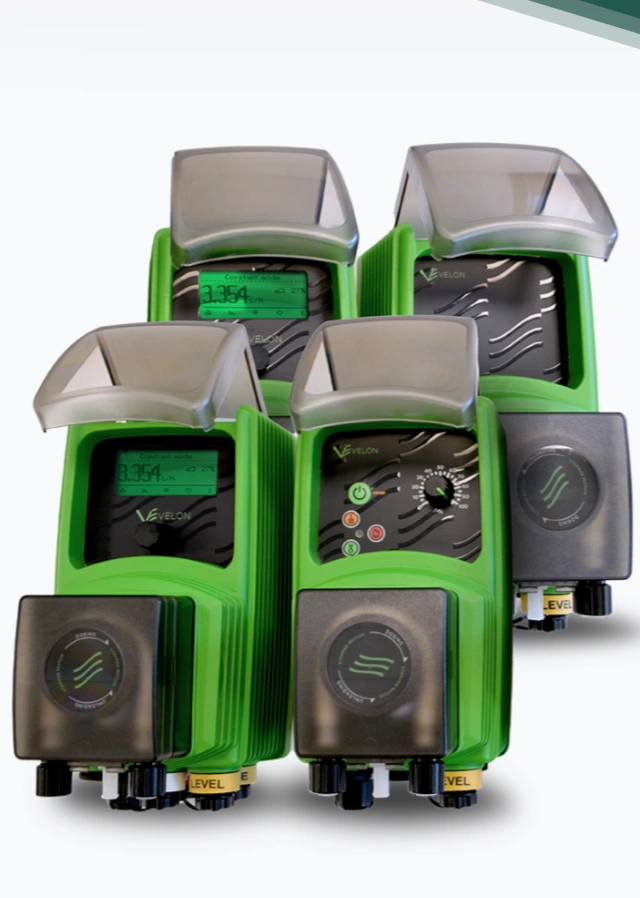

METERING PUMPS VELON
VELON is a state-of-the-art compact peristaltic dosing pump, equipped with a high-precision, electronically-controlled multifunction stepper motor that guarantees constant and regular chemical product dosing, even in demanding working conditions and with load variations. Designed to offer a complete, easy-to-use solution in all installation contexts that require precise, reliable, quiet and safe operation.
Thanks to stepper technology, it is possible to vary the rotation speed and therefore modulate dosing in real time within a range from 1% to 100%, making it ideal for environments where a wide dosage range from 18 cc/h to 12 l/h at 2 bar is required.
It is capable of controlling and automatically dosing chemicals according to the parameters detected, dynamically adapting to the needs of the system. Through a wide range of dosing modes, it is able to adapt to the most varied operational requirements of the system. Maintenance activity meters make it possible for you to schedule pipe replacement in advance based on wear, while the easy pipe change system makes the operation quick and completely safe.
The wide range of variants (MF, PO, CL, PM) offers the utmost versatility and ease of use in a variety of contexts, while multi-channel connectivity makes VELON a solution that can be adopted in any working environment. Where remote intervention is required, VELON can be accessed and managed in all its functions via the Nimbus portal or through the MyEmec app.

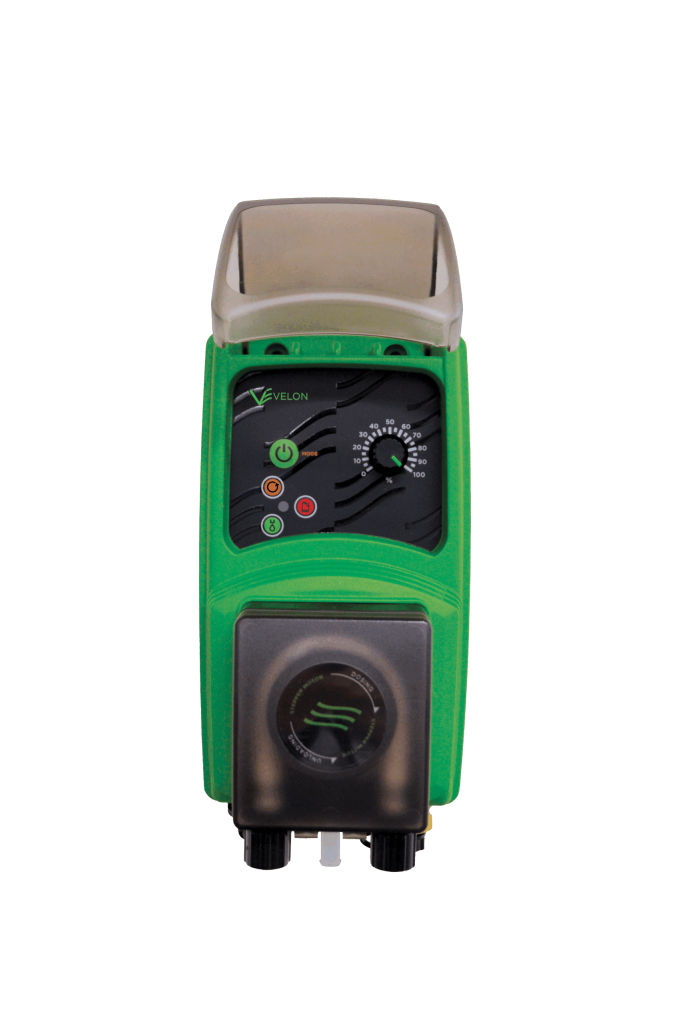

VELON CL
Simple and reliable for standard applications, recommended for those looking for a compact, easy-to-use system.
Ideal for:
- Daily and routine applications without the need for digital integrations.
- Quick and intuitive installations, even for non-specialised operators.
- Contexts where ease of use is important.
SPECIFIC MODEL FEATURES
Description
Essential, practical pump for constant dosing with manual adjustment via potentiometer
Interface/Control
Front potentiometer, LED, ON/OFF button
Working mode
Constant
Maintenance
Scheduled maintenance via activity meters
Inputs
Level
Outputs
Alarm (optional)

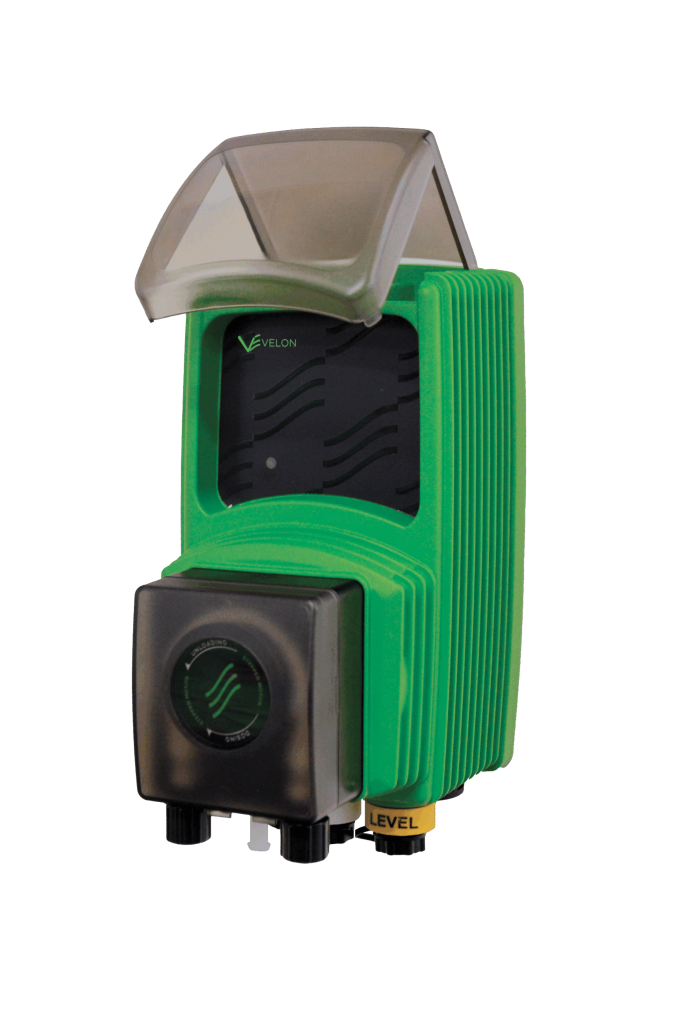

VELON PM
Maximum integration with automated systems, suitable for industrial plants, automation systems and applications where digital communication (MODBUS) is essential.
Ideal for:
- Industrial systems and complex plants with advanced automation requirements.
- Complex systems requiring remote control and high reliability.
- Intelligent management based on process parameters.
SPECIFIC MODEL FEATURES
Description
MODBUS RTU, LED, ON/OFF button
Interface/Control
Front potentiometer, LED, ON/OFF button
Working mode
External Control
Maintenance
Scheduled maintenance via activity meters
Inputs
MODBUS RTU, Level
Outputs
Alarm (optional)

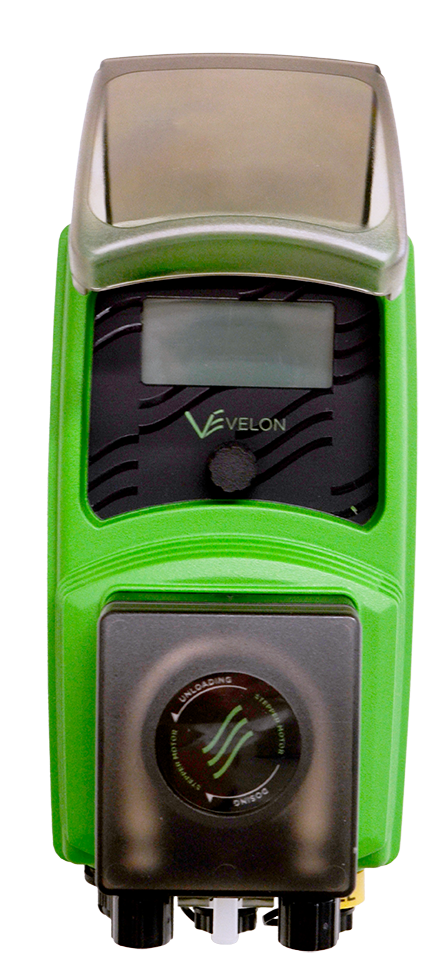

VELON MF
Multifunctional, with an advanced interface, a complete solution for the controlled dosing of chemicals, with a particular focus on integration with monitoring systems.
Ideal for:
- Installations requiring complete and customisable dosing management.
- Contexts where reliability, simplicity and modernity must coexist.
SPECIFIC MODEL FEATURES
Description
Multifunction pump with extensive dosing modes
and digital management, including remote control
Interface/Control
Backlit RGB LCD display, encoder, remote
management via app/web
Working mode
Constant, CC/Pulse, PPM, %, MLQ, Batch, Volt, mA,
Pulse, Weekly Program, Ext Constant
Maintenance
Scheduled maintenance via activity meters
Inputs
MODBUS RTU, Multi-function, Level
Outputs
Alarm (optional)
Connectivity
Wi-Fi & Bluetooth
Aggiornamento Firmware Update
OTA

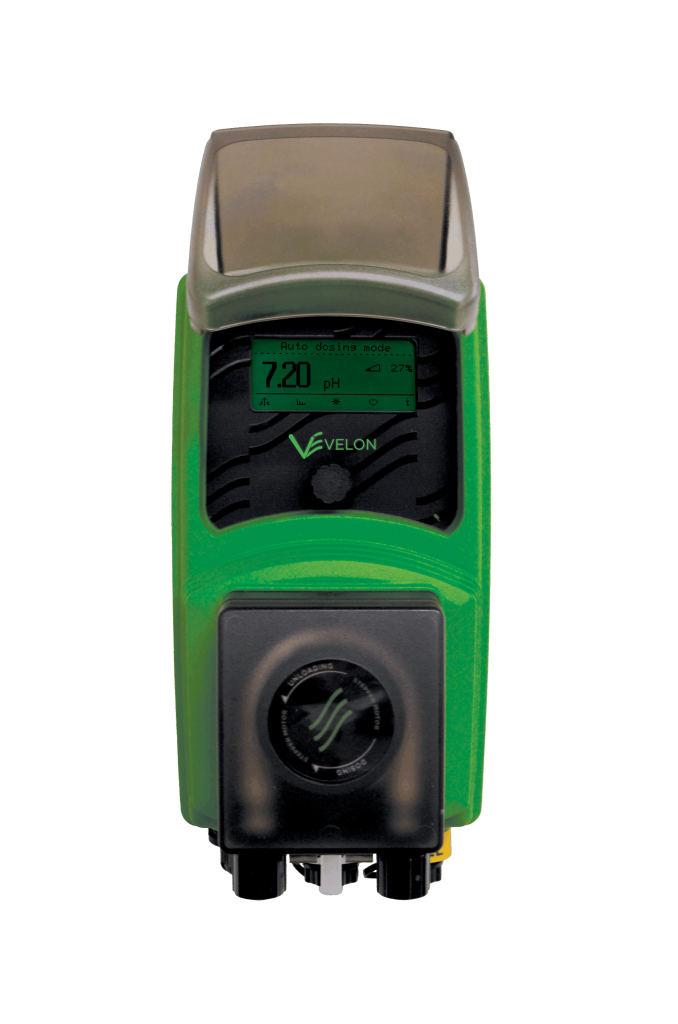

VELON PO
Proportional control with pH and Redox potential measuring, recommended for those seeking active and intelligent dosing management, directly connected to the values measured in the system.
Ideal for:
- Swimming pool systems.
- Complex systems requiring remote control and high reliability.
- Intelligent management based on process parameters.
SPECIFIC MODEL FEATURES
Description
Versatile pump with proportional adjustment and remote control
Interface/Control
Backlit LCD display, encoder, remote management via app/web
Working mode
Proportional, Autodosing
Maintenance
Scheduled maintenance via activity meters
Inputs
MODBUS RTU, Standby, Level, Serial probe
Outputs
Alarm (optional)
Connectivity
Wi-Fi & Bluetooth
Aggiornamento Firmware Update
OTA
FEATURES COMMON TO THE ENTIRE SERIES
Microprocessor
High-performance state-of-the-art
Protection
IP65

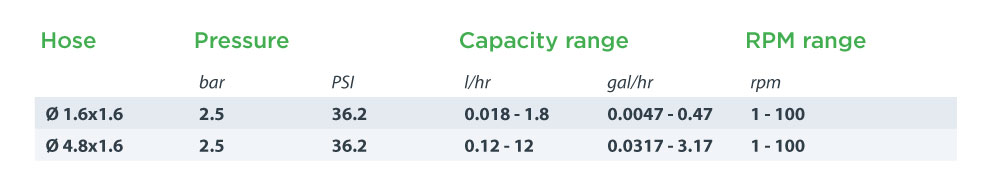

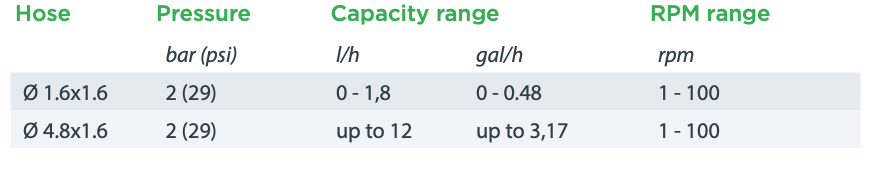

Flow Rate Range
(l/h – gal/h)
(Ø1.6×1.6)
0.018 – 1.8 l/h
0.0047 – 0.47 gal/h
Installation Class
II
Pressure (bar – psi)
2 (29)
Power supply
100–240VAC, 12VDC, 24VDC
Operating Temperature
10 – 45 °C
55 – 113 °F
Manufacturing Materials
PC/ABS, PVDF, POM, TPV
RPM range (rpm)
1 – 100
Flow Rate Range
(l/h – gal/h)
(Ø4.8×1.6)
0.12 – 12 l/h
0.0317 – 3.17 gal/h
Additive Temperature
0 – 50 °C
32 – 122 °F
Remote control
Web (Nimbus) e App (MyEmec)

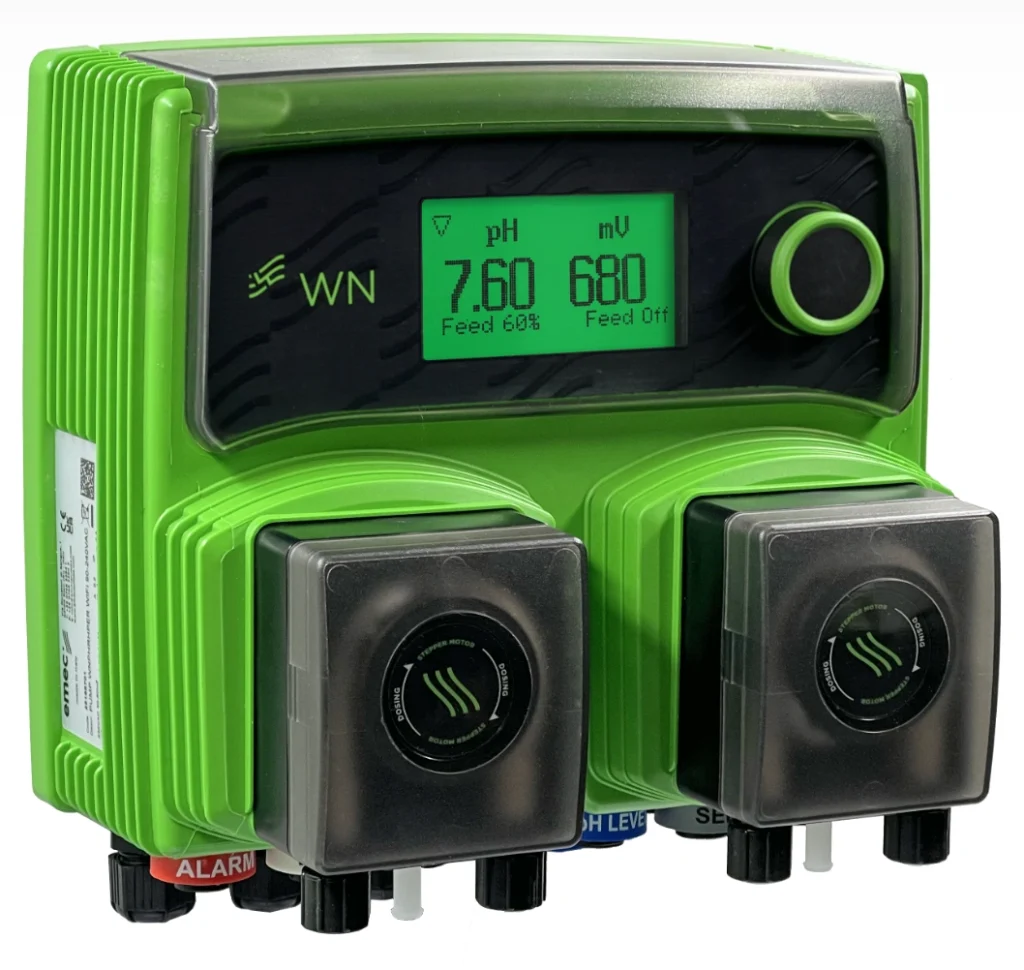

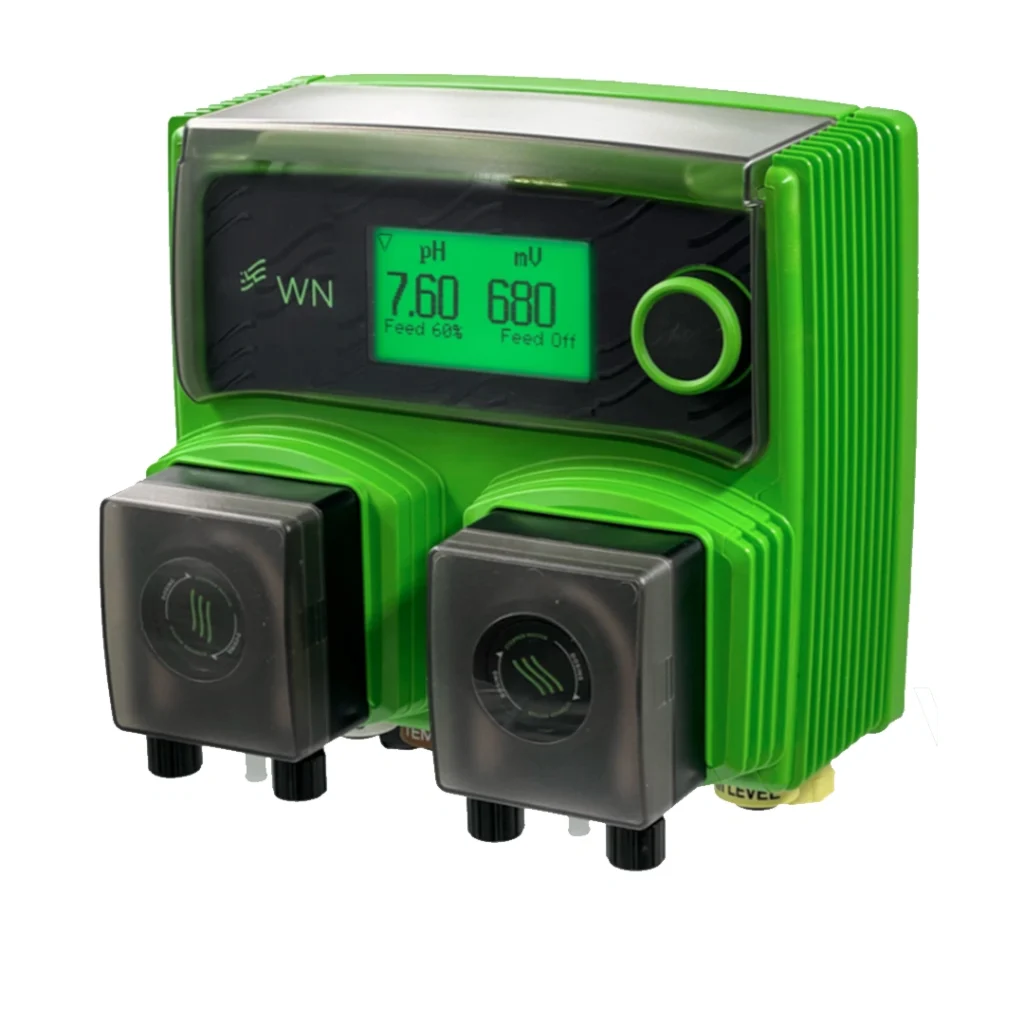

STEPPER METERING PUMPS WNPHXX
The WNPHxx series was created by EMEC to offer a complete and easy-to-use solution for pool water treatment and for all installation contexts that require prec ise, reliable and quiet operation, c ome in wellness and spas. WNPHxx series products are two-channel multi-parameter with temperature readout.
STEPPER METERING PUMPS WNPHXX
The WNPHxx series was created by EMEC to offer a complete and easy-to-use solution for pool water treatment and for all installation contexts that require prec ise, reliable and quiet operation, c ome in wellness and spas. WNPHxx series products are two-channel multi-parameter with temperature readout.

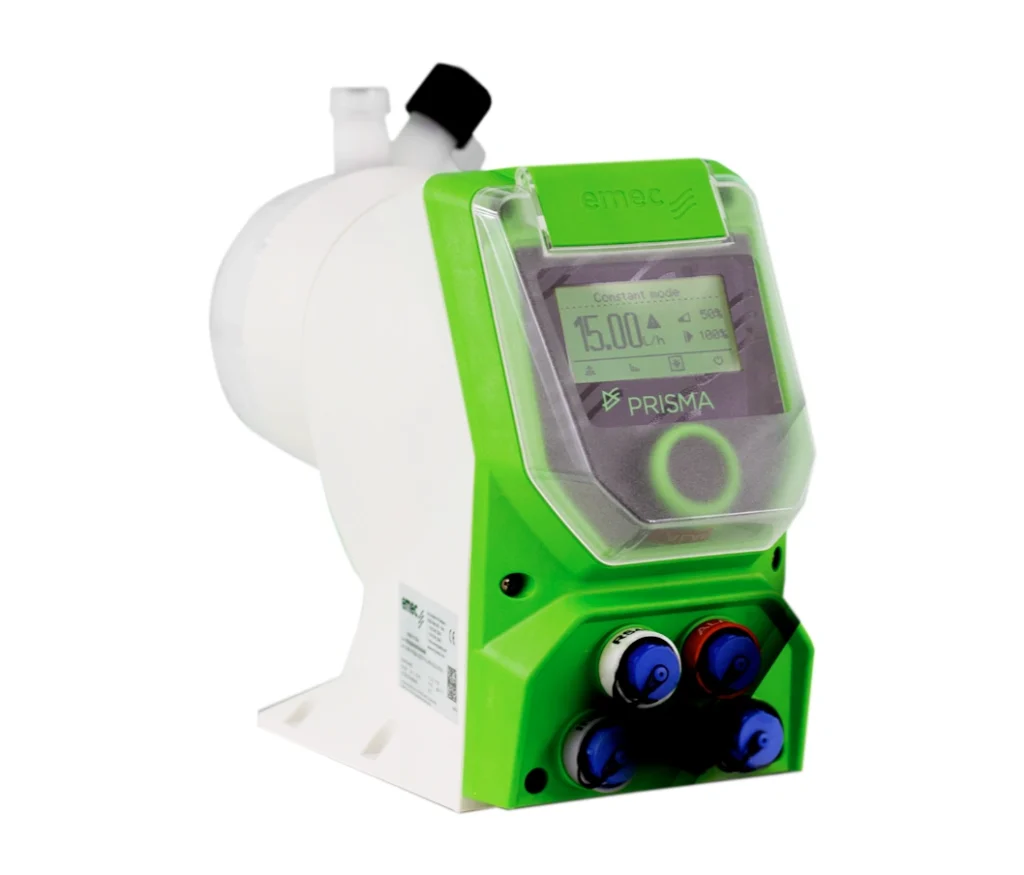

PRISMA STEPPER METERING PUMPS
The PRISMA dosing pump is the best solution for the highest precision dosing with extreme reliability. The versatile stepper motor and sophisticated MultiFunction software offer absolute control over dosing speeds and working modes, as well as high flexibility.
The ENCODER control knob allows easy navigation through configuration menus and control and adjustment of working parameters. The backlit display can also signal different working states: pump running; stand-by; warning; alarm.
TURNDOWN RATIO
PRISMA pumps offer extremely precise control with an incredible turndown ratio of up to 4800:1. This allows the dosing process to be subdivided up to a maximum of 4800 steps to enable the most precise and even distribution of the product to be dosed.
SLOW MODE.
The Slow Mode function, when enabled, allows the suction speed to be reduced from 100% to 1% of normal speed, making priming and dosing easier, more reliable and accurate even with very viscous liquids.

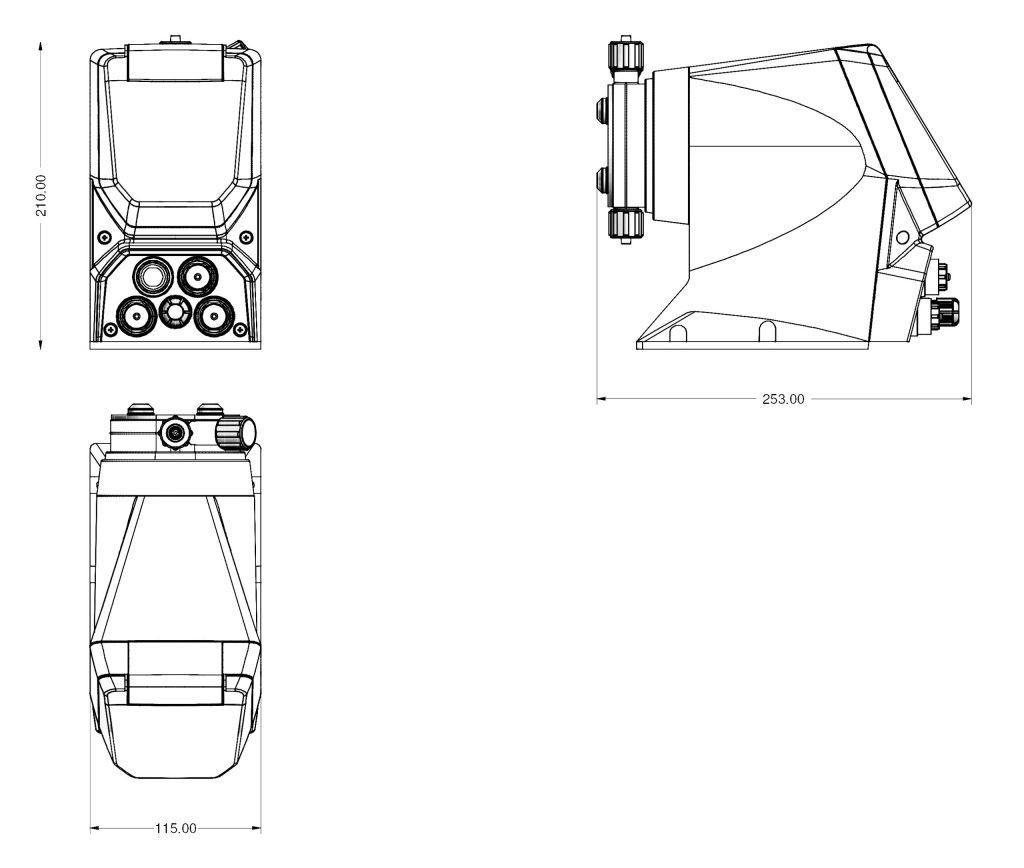

PRISMA
PRISMA is a metering pump with a diaphragm stepper motor. The position and speed of the diaphragm are controlled by the microprocessor for the entire delivery/suction cycle.
PRISMA is equipped with Level Control, Alarms and Stand-by, while working modes include: Constant, Constant with external input, ppm, %, mlq, Pause-Work, Weekly, mA, Pulse, Volt, External Batch and Manual Batch. The included installation kit ensures the best

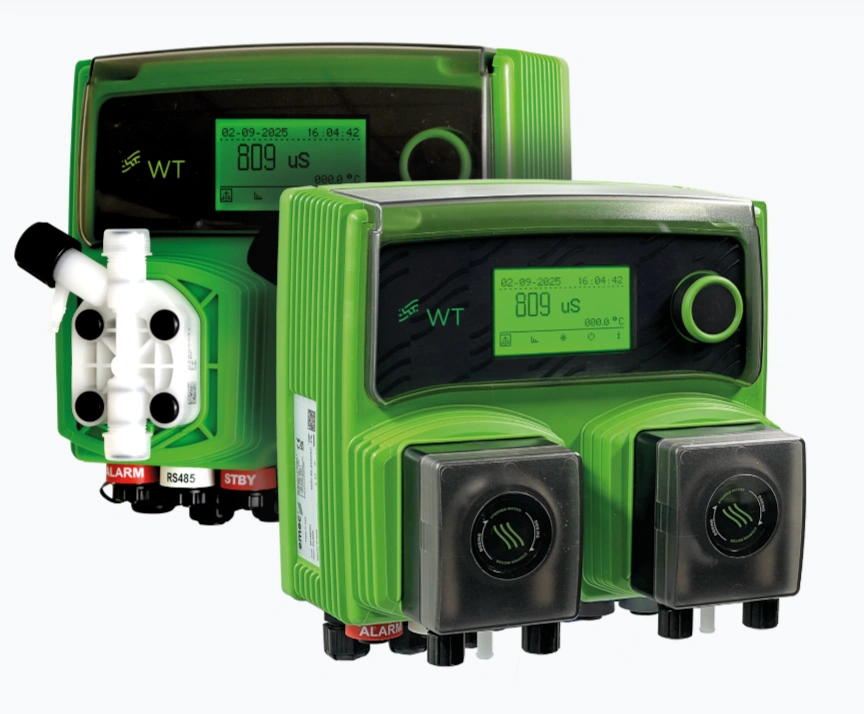

METERING PUMPS WT
The WT pump is the complete advanced solution for controlling and dosing biocides and inhibitors, which are essential for treating and disinfecting water, preventing the proliferation of bacteria and algae inside evaporative towers. The WT also integrates a corrosion and scale inhibitor dosing function, ensuring continuous protection of metal surfaces and pipes. Dosing of the biocide and inhibitor is managed proportionally on make-up water (both continuous and one-shot), timer or in proportion to the discharge time. The Lockout function ensures the utmost efficiency in chemical management, while the Safety Timer on the discharge solenoid valve guarantees that the system is always safe.
Remote management via Nimbus/MYEMEC App ensures maximum flexibility and optimisation in system management.
Features
- Large LCD display with backlighting that adapts to device operation
- Encoder knob for instrument control
- PC+ABS box
- Flow control input
- Conductivity reading
– 0/3 mS – 0/30 mS (ECDINDPT)
– 0/10 mS (ECDSINDPT)
– 0/10 mS (ECDCCPT) - Temperature reading: 0 to 100°C
- Independent dosing of biocide and inhibitor
- Multiple dosing modes: proportional in ppm, daily/weekly timer
- Lockout function
- Safety timer
- Alarms: level, no flow
- Digital inputs can be set to N.O. or N.C.
- Delayed start of dosing
- Permanent data storage with system log viewable on display
- Bluetooth LE / 2.4Ghz WiFi connection for APP and Remote Control
- Upgradable firmware (via OTA)
- Installation class II (IEC/EN 61010-1)
- Pollution level 2 (IEC/EN 61010-1 and IEC 60664-1)
- IP 65 protection (IEC/EN 60529)
- Manual or automatic bleed
- Built-in MODBUS
- Vertical installation
Peristaltic WT (stepper)
Dual stepper motor technology combined with two long-life, low-permeability peristaltic tubes, ideal for maximum safety and precision in the dosing of biocides and inhibitors. The inverter function allows advanced chemical management in complete safety for the operator. The scheduled maintenance function minimises system downtime. Automatic water draining is managed based on the conductivity value detected, preventing the accumulation of dissolved salts and ensuring optimal chemical balance in the cooling water circuit.
Inputs
Conductivity probe, Water meter input, Level 1 and 2, Flow sensor, Standby
Diaphragm WT (solenoid)
The diaphragm version is an advanced solution for an extremely wide range of chemical dosing applications in evaporative towers thanks to its wide flow/pressure range. It is equipped with solenoid-operated diaphragm movement with hydraulic parts in PVDF with high chemical resistance. Integrated functions include manual or automatic bleed, standby mode, and delayed start of dosing.
Motor and accessories
- Double magnet with 45 pulses/min, continuously adjustable (1% – 100%)
- Valves with double ball
- Standard hydraulic parts in PVD
Power supply
115 VAC
230 VAC

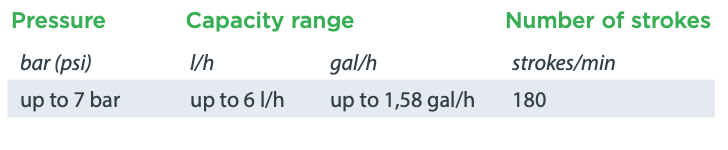

Performance
Outputs
Alarm (free contact relay) MODBUS RTU port, Pump 1 and 2 Bleed (water drain)
