Control tools

CONTROLLERS

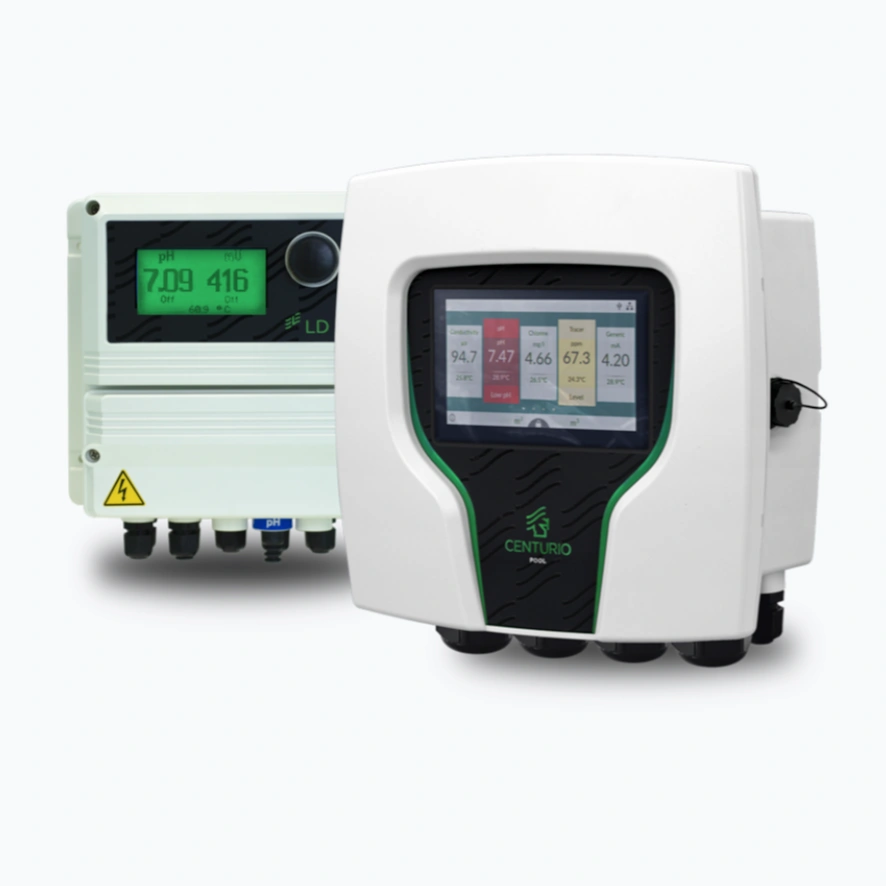

EMEC controllers offer a solution to a wide variety of measurement and control needs in chemical dosing processes.

Our controllers allow accurate, continuous management of dosing processes, as well as alarm management and recording and archiving of readings (with the possibility of exporting via USB). Parameters such as pH, redox (oxidation-reduction), chlorine, bromine, fluorine, chlorine dioxide, hydrogen peroxide, ozone, peracetic acid, turbidity, conductivity, dissolved oxygen or temperature can be measured and adjusted.

Some control systems are already designed for certain purposes, such as the CENTURIO TOWER series controllers designed for cooling towers or the CENTURIO POOL designed for swimming pool management.

Remote management

What sets the most advanced controllers apart is the possibility of connecting (via Ethernet, 3G/4G or WI-FI depending on the configuration) to the online remote management system Nimbus, which allows different controllers located in different places to be monitored and adjusted remotely.

With the MODBUS serial communication protocol, on the other hand, it is possible to connect EMEC control controllers with other devices (PLCs) connected to the same network via the RS485 interface.

CENTURIO SERIES
LD SERIES
MTOWER SERIES

J SERIES
DIN SERIES
OSIN SERIES

CENTURIO SERIES

WHAT CHANGED
  • ƒ Solve the issues related to SD technology
  • ƒ Improve responsiveness of the screen
  • ƒ Reduce issues related to electromagnetic disturbance
  • ƒ WIFI always available
  • ƒ Front interchangeable with existing installed Centurio
  • ƒ Additional safety features like watchdog and logging of power interruptions
NEW CPU
  • ƒ CPU: Quad core Arm® Cortex® A55 (ARMv8) 64 bit @ 2.0GHz
  • ƒ GPU: Arm Mali™ G52 2EE, OpenGL® ES1.1/2.0/3.0/3.1/3.2, Vulkan® 1.1, OpenCL™ 2.1
  • ƒ Memory: 32bit LPDDR4X
  • ƒ Storage: eMMC 5.1 up to 4GB 802.11 b/g/n/ac Wireless LAN (Wi-Fi 5)
NEW TOUCH DISPLAY

SPECIFIC MODEL FEATURES

Description
Essential, practical pump for constant dosing with manual adjustment via potentiometer

Interface/Control
Front potentiometer, LED, ON/OFF button

Working mode
Constant

Maintenance
Scheduled maintenance via activity meters

Inputs
Level

Outputs
Alarm (optional)





CENTURIO SERIES

CENTURIO PRO |

CENTURIO controllers feature multi-parameter digital control systems capable of meeting all chemical dosing management needs thanks to their simple interface and high-performance hardware and software.

CENTURIO PRO is the uncompromising, complete and versatile solution, equipped with all the main reading parameters and all the most important functions for managing dosing systems.

SPECIFIC MODEL FEATURES

Description
Essential, practical pump for constant dosing with manual adjustment via potentiometer

Interface/Control
Front potentiometer, LED, ON/OFF button

Working mode
Constant

Maintenance
Scheduled maintenance via activity meters

Inputs
Level

Outputs
Alarm (optional)

CENTURIO POOL |

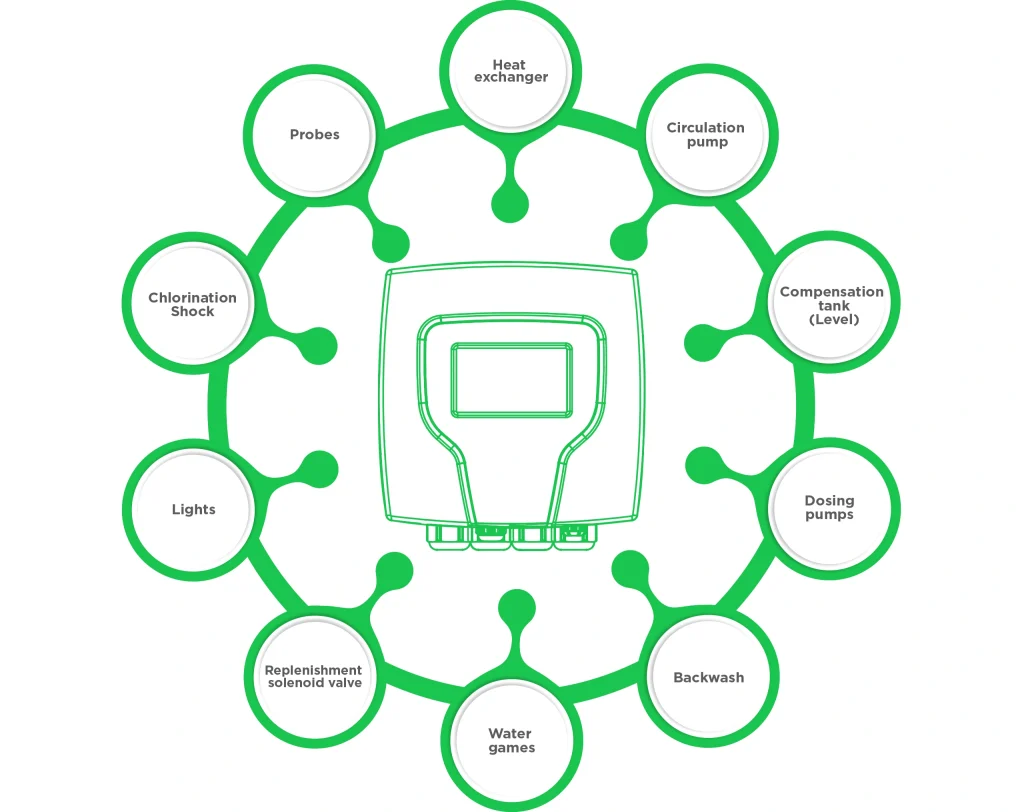

CENTURIO POOL is designed to manage pool systems and allows you to control the shock chlorination and dechlorination cycle, water level and temperature, filtration pump, algaecide pump, flocculant pumps, pool lights and water features. It can work with pH priority and has a wide choice of setpoints for each channel, as well as allowing the setting of numerous customisable timers to offer the most suitable management for each pool.

CENTURIO TOWER |

CENTURIO TOWER is the specific solution designed for the management of cooling tower installations, with specially designed features for the measurement of inhibitors and corrosion, salt deconcentration of towers by measuring conductivity and control of purge and make-up water. Numerous options are available for dosing biocides, inhibitors and dispersants and for controlling the concentration factor.

POWER SUPPLY
85-264vac
50/60Hz

LD SERIES

MULTI-CHANNEL LD |

The MULTI-CHANNEL LD controllers are a series of multiple channel control systems capable of meeting a wide range of requirements. They guarantee integral control of the water to be treated and ensure optimised dosing of chemicals, allowing adjustment of the pH and a second parameter, depending on the model.

CENTURIO POOL |

CENTURIO POOL is designed to manage pool systems and allows you to control the shock chlorination and dechlorination cycle, water level and temperature, filtration pump, algaecide pump, flocculant pumps, pool lights and water features. It can work with pH priority and has a wide choice of setpoints for each channel, as well as allowing the setting of numerous customisable timers to offer the most suitable management for each pool.

MULTI-CHANNEL LD PLUS |

The MULTI-CHANNEL LD controllers are a series of multiple channel control systems capable of meeting a wide range of requirements. They guarantee integral control of the water to be treated and ensure optimised dosing of chemicals, allowing adjustment of the pH and a second parameter, depending on the model.
